Specification

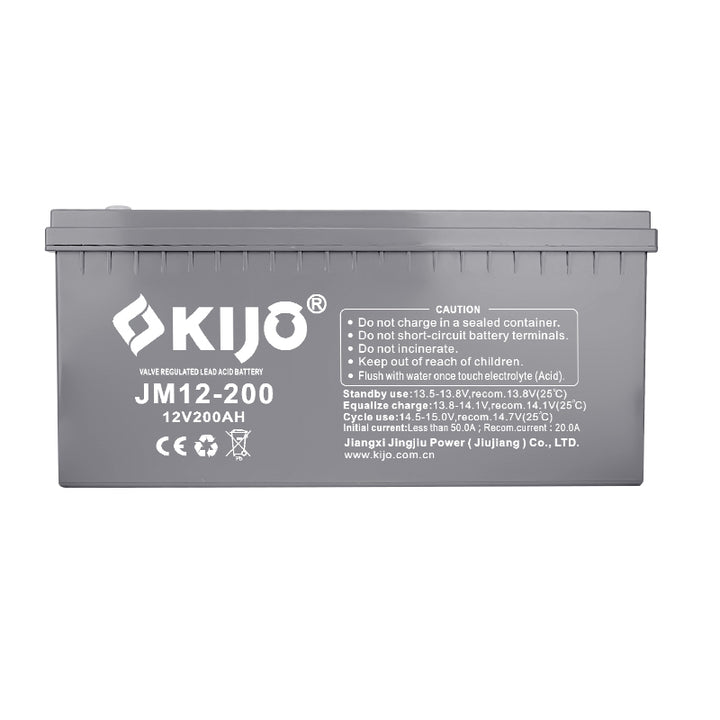

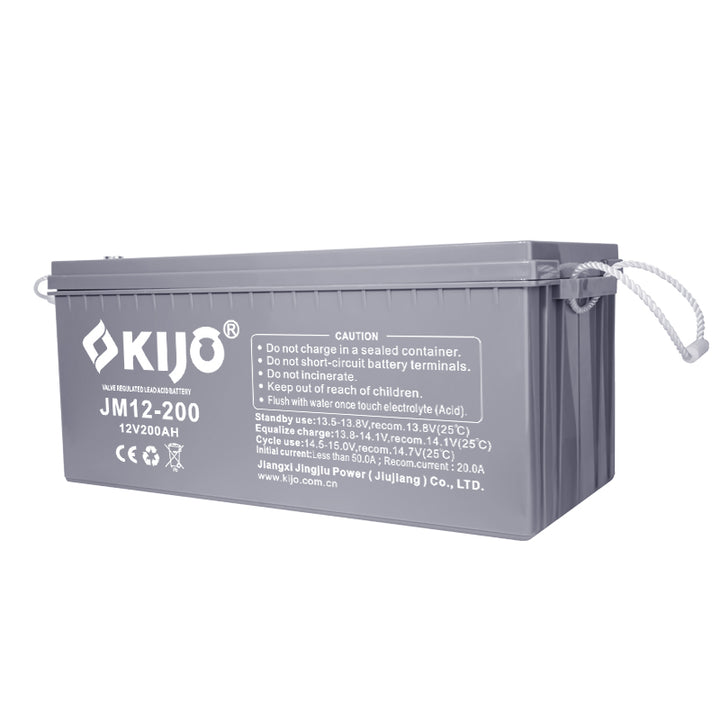

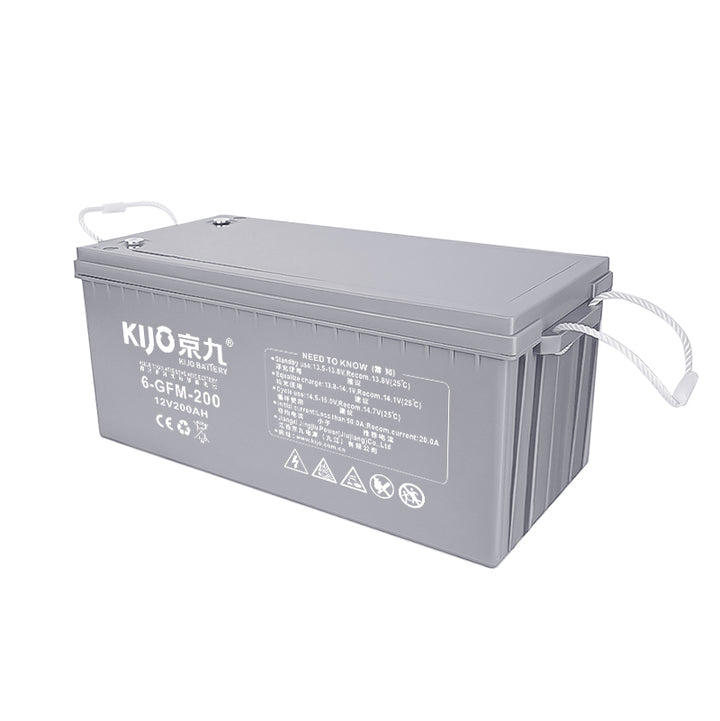

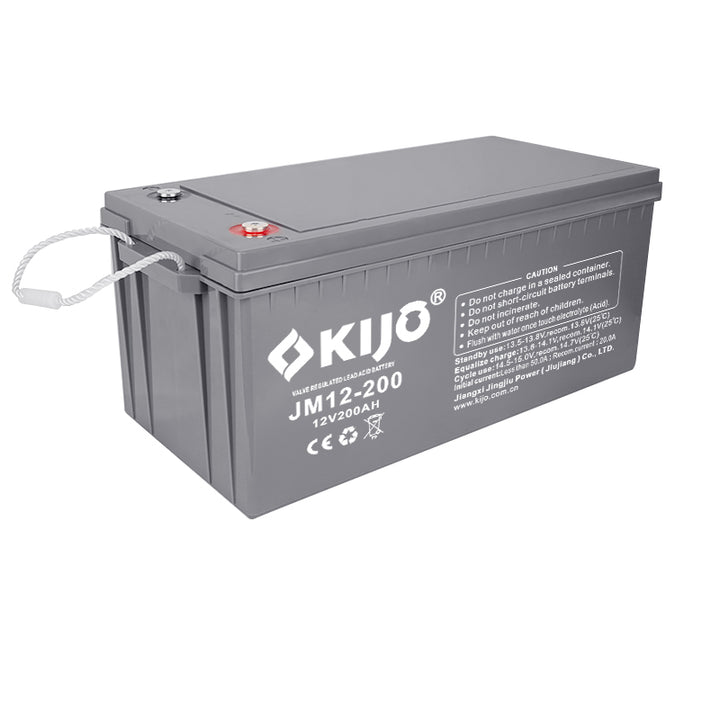

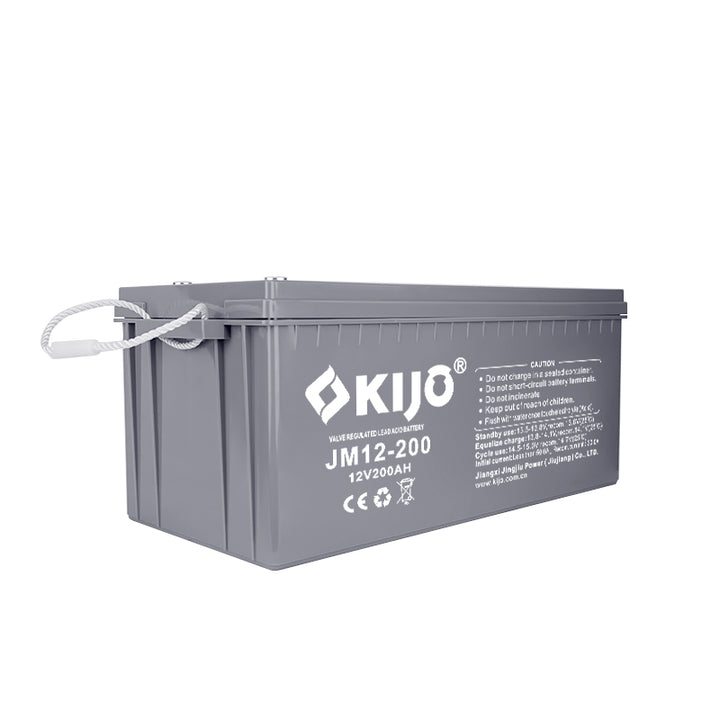

JM Series 12V 200Ah 57kg AGM Deep Cycle Battery
| Nominal Voltage | 12V |
| Nominal Capacity | 200Ah |
| Design life | 10 years |
| Terminal | M8 |
| Approx. Weight | Approx 57.0kg (126lbs) |
| Dimension | 522(L)×240(W) ×219(H)×222(TH)mm |
| Container Material: | ABS Plastici |
| Internal resistance | Full charged at 25°C: 3.0 mΩ |
| Max. Discharge Current | 2400A(5S) |
| Charge current | Max. 50A; Recom.20A |
| Storage Temperature | -20 ~50℃(-4~ 122°F) |
| Charge Temperature | -20 ~50℃(-4~ 122°F) |
| Discharge Temperature | -20 ~50℃(-4~ 122°F) |
| Self discharge | 3% of capacity declined per month at 25°C |
| Warranty in Years: | 3 |
